Teltonika RUTM51 to solidny przemysłowy router 5G (z obsługą architektur SA i NSA) wyposażony w 5x portów Gigabit Ethernet, WiFi, Dual-SIM, port USB, potężny procesor i oprogramowanie RutOS do zaawansowanych rozwiązań sieciowych.
Router RUTM51 to przyszłościowy, wielosieciowy router przemysłowy, oferujący komunikację mobilną 5G dla aplikacji o dużej szybkości i dużej ilości danych. Komunikacja komórkowa 5G dual SIM w połączeniu z 5x portami Gigabit Ethernet i dwuzakresowym Wi-Fi umożliwia niezawodny transfer danych z bardzo niskimi opóźnieniami.
Moc technologii 5G w połączeniu z szeroką gamą interfejsów i przemysłowych funkcji sprzętowych zapewnia możliwość dostosowania do przyszłych aktualizacji i rozszerzeń. Router posiada dwurdzeniowy procesor MediaTek MIPS1004KC o taktowaniu 880MHz i 256 MB pamięci RAM DDR3. Router zawiera oprogramowanie RutOS i funkcje bezpieczeństwa, OpenVPN, IPsec, Firewall, Auto Failover, kontrola SMS oraz wsparcie RMS. To urządzenie jest idealne do zaawansowanych aplikacji przemysłowych i korporacyjnych. Urządzenie zamknięte jest w aluminiowej obudowie.
Teltonika RUTM51 jest dostarczany z systemem RutOS, który zapewnia zaawansowane funkcje bezpieczeństwa i wyspecjalizowane protokoły przemysłowe dla szerokiej gamy profesjonalnych scenariuszy aplikacji i jest kompatybilny z naszym systemem zdalnego zarządzania (RMS), co zapewnia zoptymalizowane możliwości zdalnego zarządzania i monitorowania dużych flot urządzeń .
Dzięki funkcji SMS management możliwe jest m.in. restartowanie urządzenia, łączenie i sprawdzanie statusu połączenia. Natomiast funkcja failover nie tylko zapewnia bezawaryjność połączenia w przypadku, gdy jedna z kart SIM zostanie rozłączona, ale także umożliwia obniżenie kosztów poprzez ustawienie opcji failover raoming, która przełącza połączenie na drugą kartę SIM w sytuacji gdy pierwsza z kart rejestruje się w sieci roamingowej i odwrotnie. Przełączanie pomiędzy SIM1 i SIM2 można również uzależniać od wielkości pobieranych cyklicznie danych (przez dzień, tydzień lub miesiąc), a także od poziomu zasięgu.
Konfigurację routera, przywracanie i zapisywanie jego ustawień odbywa się poprzez interfejs WWW, wykorzystując do tego przeglądarkę internetową. Routerem można także zarządzać za pomocą SMS. Opcja ta jest niezwykle przydatna w sytuacji, gdy użytkownik nie ma możliwości zainicjowania połączenia VPN czy zrestartowania routera. RUTX50 pozwala także na odbieranie i wysyłanie do jednego lub wielu użytkowników GSM wiadomości tekstowych SMS.
Teltonika RUTM51 (RUTM51100000) obsługuje pasma:
- 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n77, n78
- LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B20, B28, B66
- LTE-TDD: B38, B40, B41
- 3G: B1, B2, B5, B8
Zawartość zestawu:
- Router RUTM51
- Zasilacz 18 W - Teltonika PR3PXEU3 zasilacz 12V 1.5A
- 4x anteny 5G LTE (obrotowe, SMA męskie) - Teltonika PR1US540 antena 5G, LTE, 4.5dBi, SMA
- 2x anteny WiFi (mocowanie magnetyczne, RP-SMA męskie, kabel 1,5 m) - Teltonika PR1KRF30 antena Wi-Fi, magnetyczna, 3dBi, RP-SMA, 1.5m
- Kabel Ethernet 1,5 m
- Adapter na kartę SIM - Teltonika SIM adapter kit (PR5MEC19)
- QSG (Przewodnik szybkiego startu)
- Pudełko
- 5G - Niezwykle wysokie prędkości komórkowe do 3,3 Gb/s
- SA i NSA - Obsługuje obie architektury w celu wykorzystania infrastruktury 5G
- Wsteczna kompatybilność z 4G (LTE Cat 12)
- Jednocyfrowe opóźnienie dla aplikacji o znaczeniu krytycznym
- Dwuzakresowa przepustowość danych dla maksymalnie 150 klientów jednocześnie
- Wstecznie kompatybilny z technologiami sieci 4G (LTE CAT 20) i 3G
- Wave 2 802.11ac Dual Band WiFi o prędkości do 867 Mb/s
- Dual SIM - Nieprzerwana komunikacja z automatycznym przełączaniem awaryjnym
- 5x portów Gigabit Ethernet o prędkości do 1000 Mb/s
- Port USB
- Anteny: 4x Mobile, 2x WiFi
- System zdalnego zarządzania Teltonika - RMS
- Natychmiastowe przełączanie awaryjne
- Łatwy w użyciu, bezpieczny i bogaty w funkcje system operacyjny oparty na OpenWrt
Mobile
- Mobile module: 5G Sub-6GHz SA: 2 Gbps DL, 1 Gbps UL; NSA: 2.6 Gbps DL, 650 Mbps UL; 4G (LTE) - Cat 12: 600 Mbps DL, Cat 13: 150 Mbps UL; 3G - 42.2 Mbps DL, 11 Mbps UL
- 3GPP Release: Release 15
- SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD: Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list: Operator black/white list (by country or separate operators)
- Band management: Band lock, Used band status display
- SIM idle protection service: When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
- SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN: Auto APN
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID: ESSID stealth mode
- Wi-Fi users: Up to 150 simultaneous connections
- Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter: Whitelist, blacklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.
Ethernet
- WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules, TTL target customisation
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing: Balance Internet traffic over multiple WAN connections
- Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- SSHFS: Possibility to mount remote file system via SSH protocol
- VRF support: Initial virtual routing and forwarding (VRF) support
- Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
Security
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
- SSL certificate generation: Let's encrypt support
- 802.1x: Port-based network access control client
VPN
- OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
- Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA
- Supported modes: Client, Server
- Supported connection types: TCP
MODBUS
- Supported modes: Server, Client
- Supported connection types: TCP, USB
- Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis
- Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
- Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes: Station, Outstation
- Supported connection: TCP, USB
DLMS
- DLMS Support: DLMS - standard protocol for utility meter data exchange
- Supported modes: Client
API
- Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
- WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA: Firmware update from server, automatic notification
- SSH: SSH (v1, v2)
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT: MQTT Broker, MQTT publisher
- SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC: Management API over HTTP/HTTPS
- MODBUS: MODBUS TCP status/control
- RMS: Teltonika Remote Management System (RMS)
IoT Platforms
- ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics
- CPU: MediaTek, Dual-core, 880 MHz, MIPS1004KC
- RAM: 256 MB, DDR3
- FLASH storage: 16MB serial NOR flash, 256MB serial NAND flash
Firmware / Configuration
- WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA: Update FW
- RMS: Update FW/configuration for multiple devices at once
- Keep settings: Update FW without losing current configuration
- Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
- GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
- Package Manager: The Package Manager is a service used to install additional software on the device
USB
- Data rate: USB 2.0
- Applications: Samba share, USB-to-serial
- External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
- Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
- Input: 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
- Output: 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
- Events: Email, RMS, SMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
Power
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
- PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
- Power consumption: Idle: <5 W, Max: <18 W

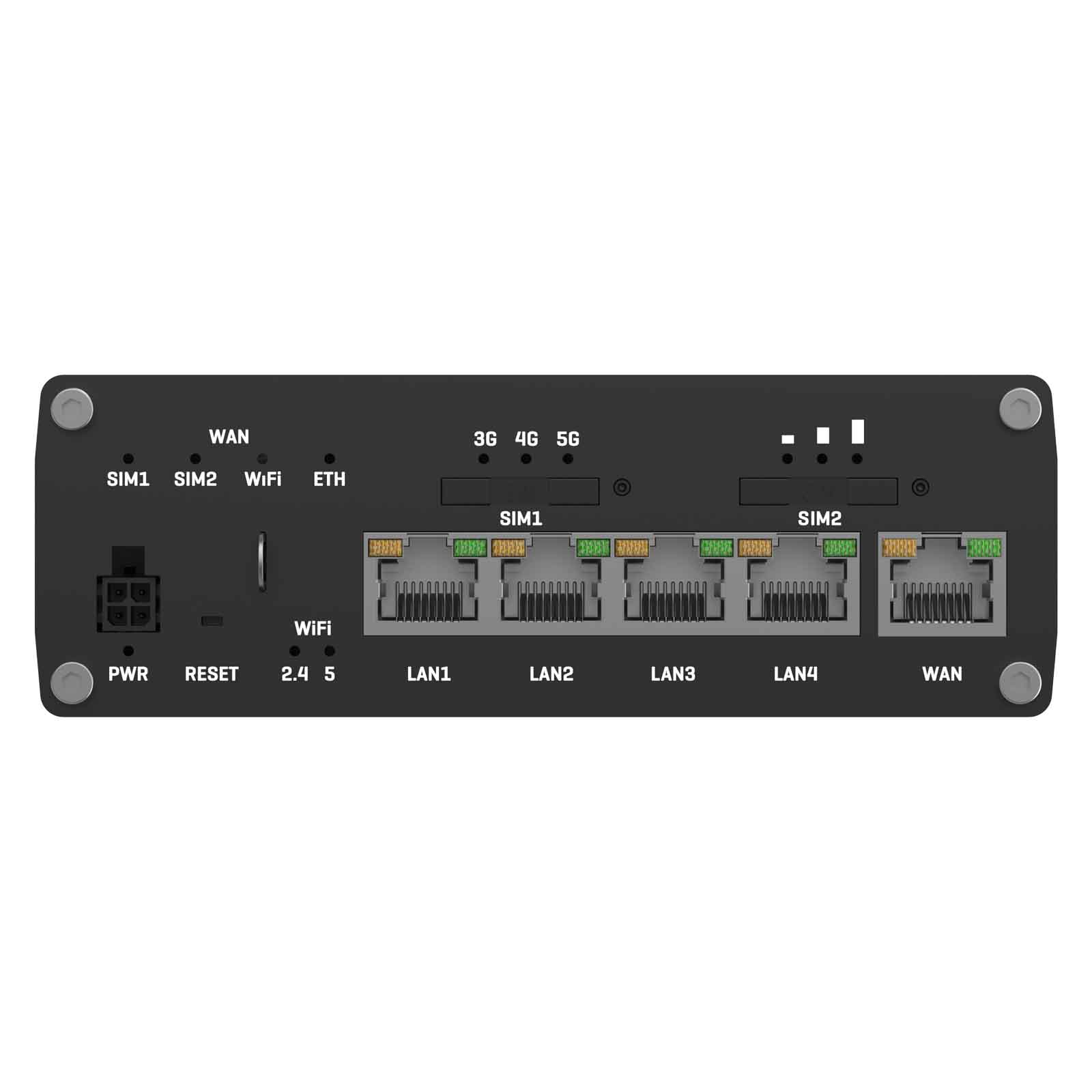

Physical Interfaces
- Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
- I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
- Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
- SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
- Power: 1 x 4-pin power connector

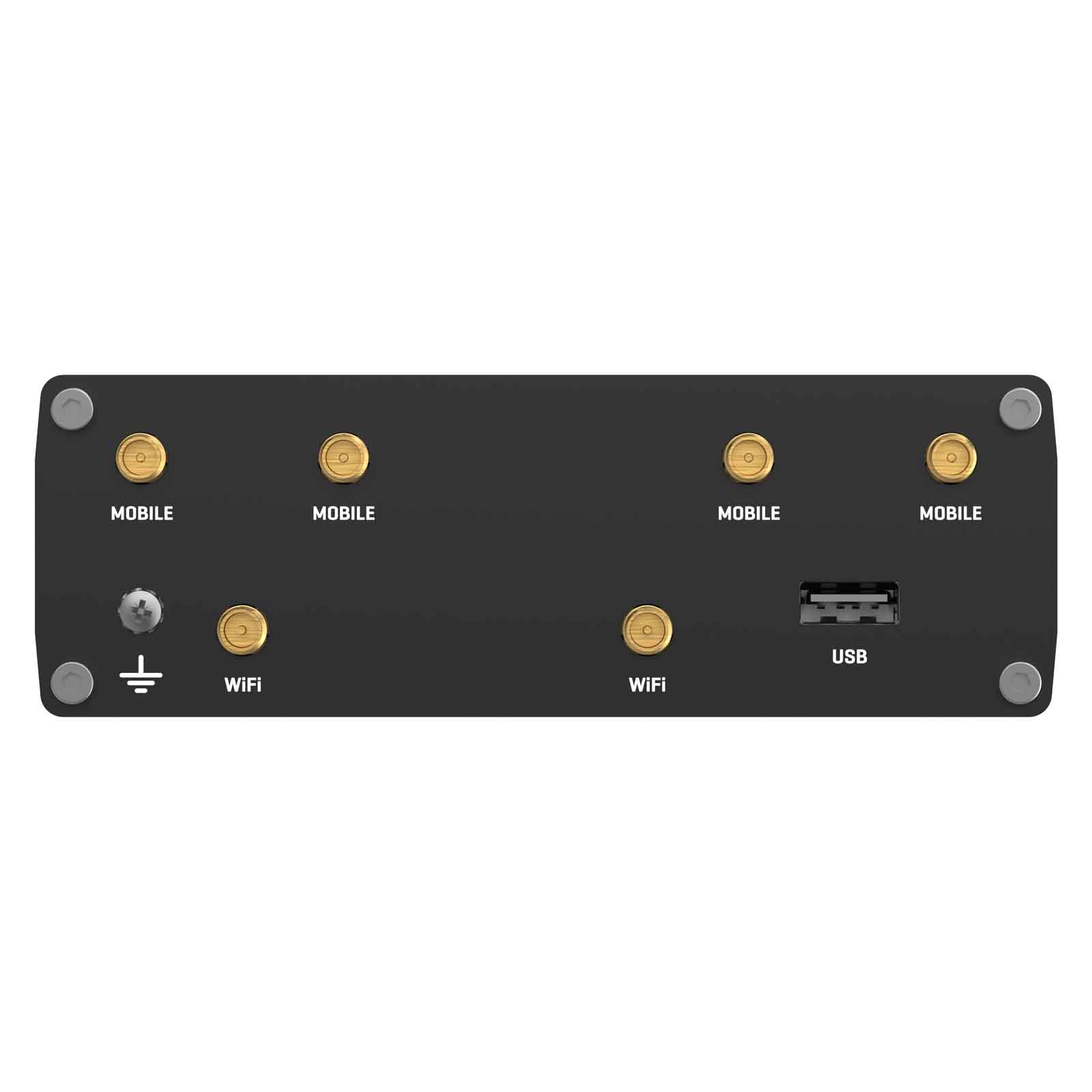

- Antennas: 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi
- USB: 1 x USB A port for external devices
- Reset: Reboot/User default reset/Factory reset button
- Other: 1 x Grounding screw
Physical Specification
- Casing material: Aluminium housing
- Dimensions (W x H x D): 132 x 44.2 x 95.0 mm
- Weight: 525 g
- Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
Regulatory & Type Approvals
- CE, UKCA, EAC, UCRF, RCM, WEEE, CB
EMC Emissions & Immunity
- Standards:
- EN 55032:2015+ A11:2020 + A1:2020
- EN 55035:2017+A11:2020
- EN 61000-3-3:2013+A1:2019+A2:2021
- EN IEC 61000-3-2:2019+A1:2021
- EN 301 489-1 V2.2.3
- EN 301 489-3 V2.3.2
- EN 301 489-17 V3.2.4
- EN 301 489-52 V1.2.1
- AS/NZS CISPR 32:2015+A1:2020
- ESD:
- EN 55032:2015+ A11:2020 + A1:2020
- EN 55035:2017+A11:2020
- EN 61000-3-3:2013+A1:2019+A2:2021
- EN IEC 61000-3-2:2019+A1:2021
- EN 301 489-1 V2.2.3
- EN 301 489-3 V2.3.2
- EN 301 489-17 V3.2.4
- EN 301 489-52 V1.2.1
- AS/NZS CISPR 32:2015+A1:2020
- Radiated Immunity: EN 61000-4-3:2006 + A1:2008 + A2:2010, EN IEC 61000-4-3:2020
- EFT: EN 61000-4-4:2012, EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014+A1:2017, EN 61000-4-5:2014+A1:2017
- CS: EN 61000-4-6:2014
- DIP: EN 61000-4-11:2020
RF
- Standards:
- EN 300 328 V2.2.2
- EN 301 893 V2.1.1
- EN 300 440 V2.2.1
- EN 301 908-1 V15.2.1
- EN 301 908-2 V13.1.1
- EN 301 908-13 V13.2.1
- EN 301 908-25 V15.1.1
- AS/NZS 4268:2017+A1:2021
- AS/CA S042.1:2022
- AS/CA S042.4:2022
- AS/CA S042.5:2022+A1:2022
- FCC Part 22
Safety
- Standards: EN IEC 62311:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS 2772.2:2016+A1:2018
|
