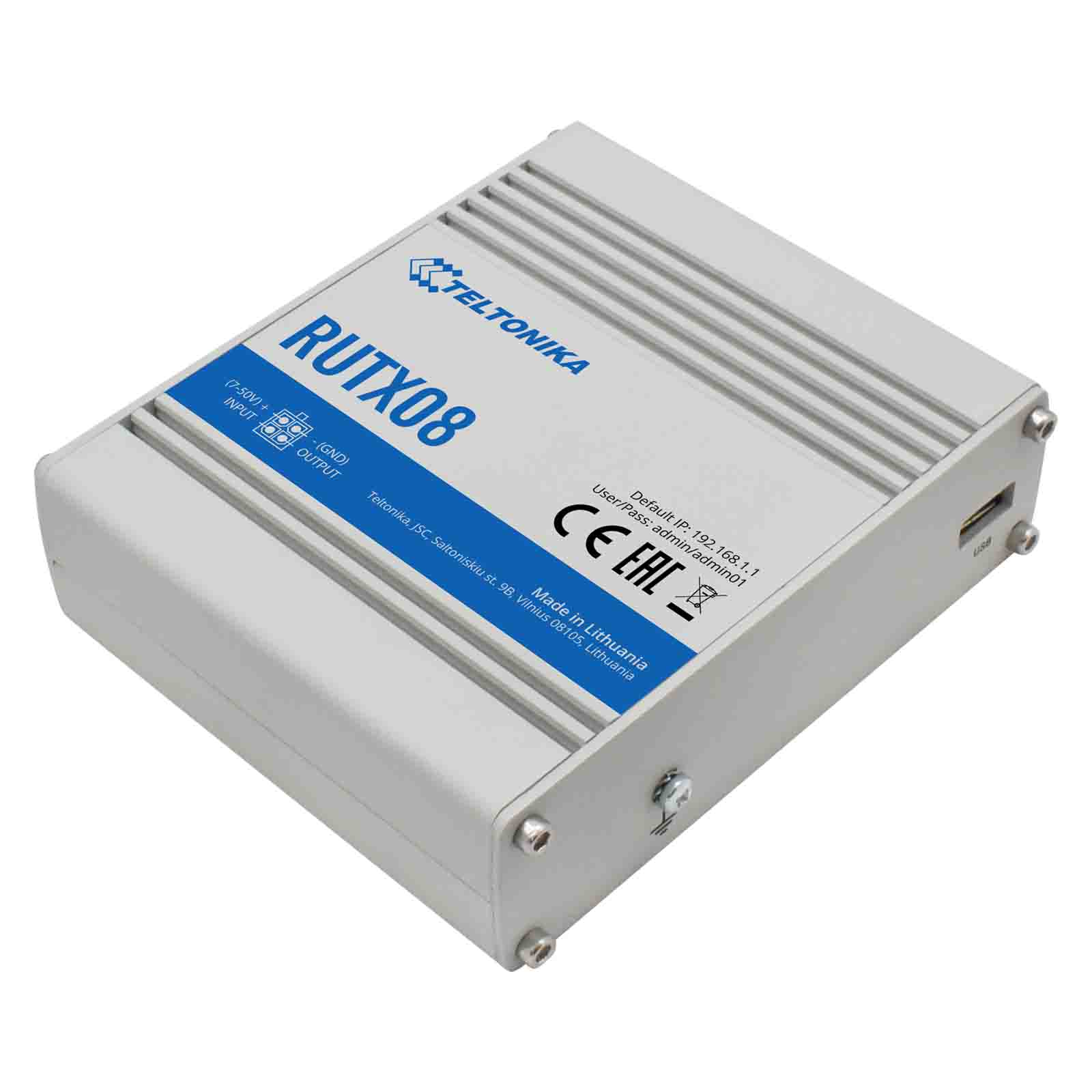

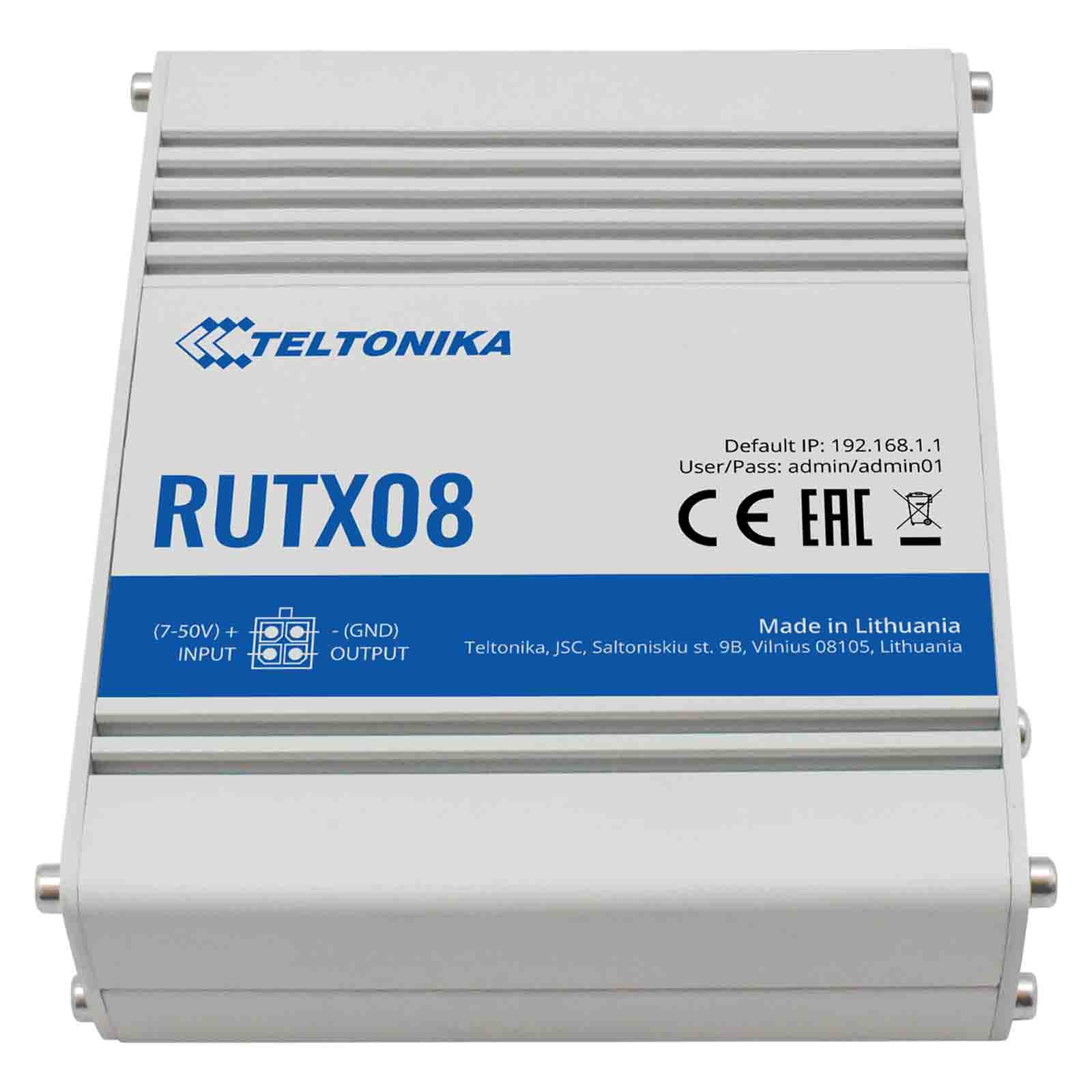

Teltonika RUTX08 (RUTX08000000) to solidny i wydajny router przemysłowy, wyposażony w cztery gigabitowe porty Ethernet, czterordzeniowy procesor ARM Cortex A7 o taktowaniu 717MHz i 256 MB pamięci RAM.

Router posiada zaawansowany system RutOS oparty na OpenWrt, port USB, a także obsługuje Firewall, funkcję VPN oraz RMS. Jest to znakomite urządzenie przemysłowe, w którym nie jest wymagana łączność komórkowa ani Wi-Fi. Urządzenie zamknięte jest w aluminiowej obudowie.
Najważniejsze cechy:

ETHERNET
WAN	1x WAN (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, FTP, SMTP, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP
VoIP passthrough support	H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring	Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules
DHCP	Static and dynamic IP allocation, DHCP Relayd
QoS	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
Network backup	VRRP
SSHFS (optional)	Possibility to mount remote file system via SSH protocol (not available in standard FW)
MONITORING & MANAGEMENT
WEB UI	HTTP, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
FOTA	Firmware update from server, automatic notification.
SSH	SSH (v1, v2)
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
SNMP	SNMP (v1, v2, v3), SNMP trap
JSON-RPC	Management API over HTTP
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU	Quad-core ARM Cortex A7, 717MHz
RAM	256MB, DDR2
FLASH memory	256MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW/configuration from server
RMS	Update FW/configuration for multiple devices
Keep settings	Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with built environment provided
INPUT/OUTPUT
Input	1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V)
Output	1 x Digital Output (open collector type, 30V@0.3A)
Events	EMAIL, RMS
USB
Data rate	USB 2.0
Applications	Samba share, custom scripts
External devices	Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats	FAT, FAT32, NTFS
POWER	(zasilacz w zestawie)
Connector	4 pin industrial DC power socket
Input voltage range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption	11W Max.
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)
Ethernet	4x RJ45 ports, 10/100/1000 Mbps
Status LEDs	3x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 3x WAN status LEDs, 1x Power LED
Power	4 pin industrial DC power socket
USB	USB A socket for external devices
Reset	Reset/restore to default button
PHYSICAL SPECIFICATION
Casing material	Full aluminium housing
Dimensions	115 x 95 x 32 mm
Weight	357 g
Mounting options	DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40 C to 75 C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
