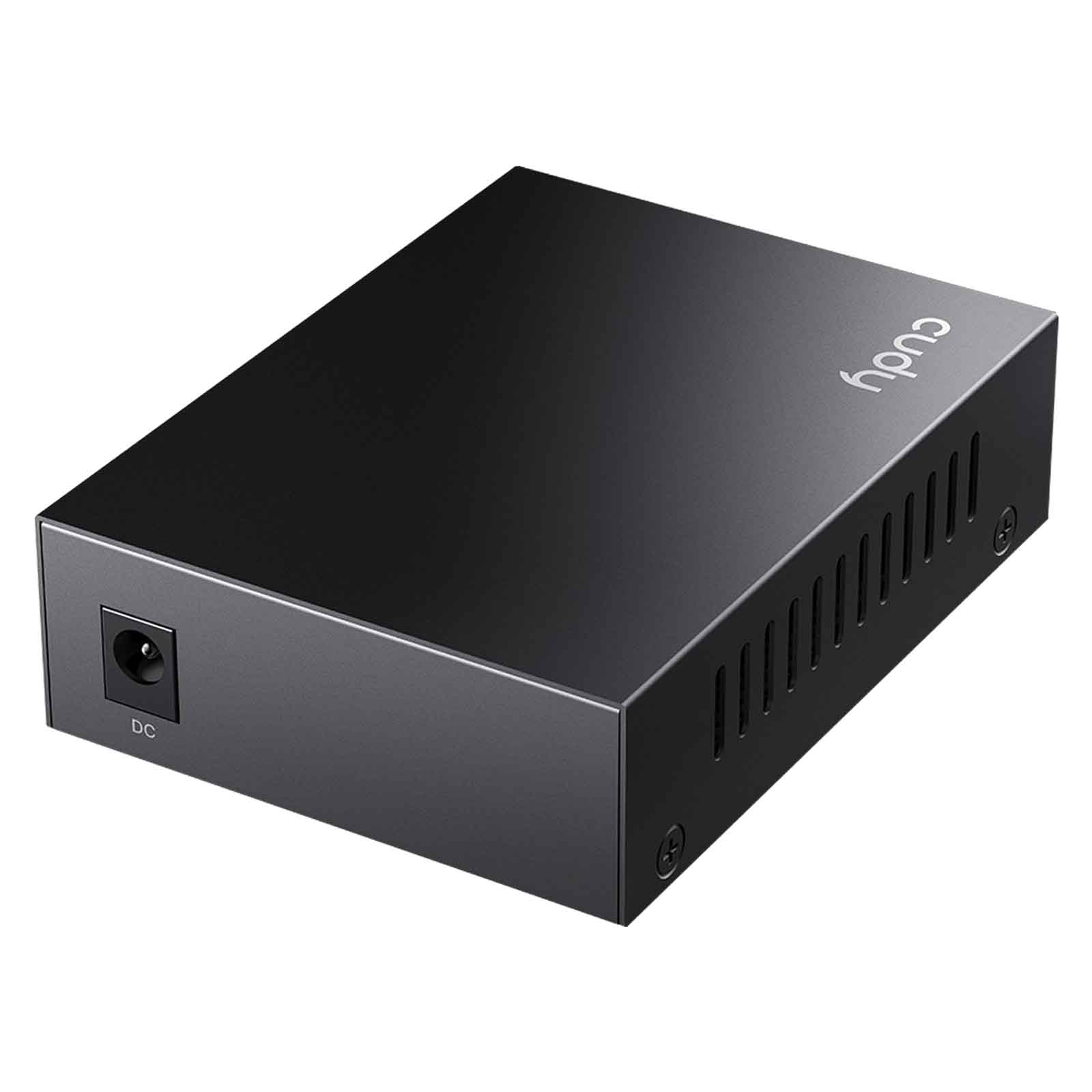

Cudy MC220P Gigabit Ethernet PoE+ Media Converter to mediakonwerter wyposażony w slot SFP i port Gigabit Ethernet LAN (RJ45) PoE.

Cudy MC220P to mediakonwerter 10/100/1000 Mb/s z portem RJ45 i slotem SFP. Port RJ45 zapewnia zarówno transmisję danych, jak i zasilanie o mocy do 30 W dla punktu dostępowego, kamery IP lub innych urządzeń PD, co ułatwia wdrażanie sieci na dużych odległościach.

Najważniejsze cechy:

• 1x port Gigabit Ethernet RJ45 PoE
• 1x slot SFP 1.25G
• 802.3at/af, maks. 30 W, tryb A
• Możliwość wymiany podczas pracy (hot-swap) dla modułów RJ45 i SFP
• Funkcje LFP i FEF do diagnostyki

Cudy MC220P Gigabit Ethernet PoE+ Media Converter
Wersja modelu	MC220P 2.0
Interfaces
1.25G SFP Slots	1
SFP Hot Swapping	Yes
Gigabit RJ45 PoE Ports	1
Max Power on a Single PoE Port	30W
PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.

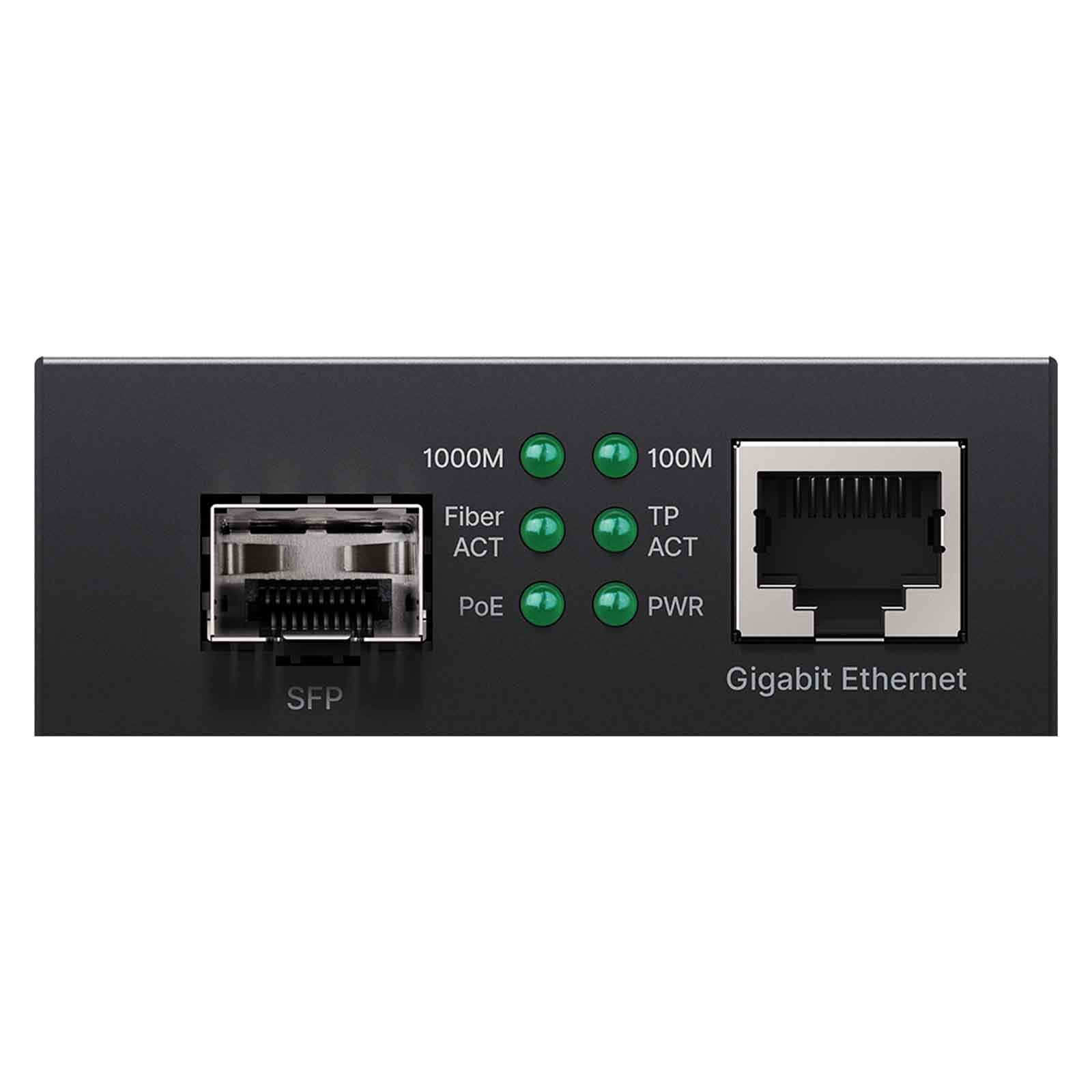

LED	PWR: Power on/off 1000M/100M: RJ45 link speed TP ACT: RJ45 status Fiber ACT: Fiber slot status PoE: PoE Status
Power Input	DC Jack
Performance
Copper Speed and Distance	Cat. 5e or higher cable: 100 meters at Gigabit
Optical Spec and Distance	Depends on the Installed Optical Module
Jumbo Frame	16 KB
Power
Power Methods	DC
DC	54V⎓0.66A
Power Adapter	Input: 100-240V~, 50/60Hz Output: 54V⎓0.66A
Power Supply	35W
Max Power Excluding PoE	2.3W (45°C / 113°F Ambient Temp.) 1W (20°C / 68°F Ambient Temp.)
Idle Power Consumption	0.5W
Network
802.3 Protocols	802.3at PoE 802.3af PoE 802.3i 10BASE-T 802.3u 100BASE-T 802.3ab 1000BASE-T 802.3x Flow Control 802.3az Power Saving
Troubleshooting	Far End Fault (FEF) Link Fault Pass Through (LFP)
Reliability
Environment	Operating Temperature: 0~50 ℃ (32~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
Mechanical
Dimension	70×94×26 mm 2.76×3.7×1.02 inches
Casing Material	Metal
Installation	Desktop Chassis
Package Content	MC220P Installation Guide Power Adapter
Ordering Information
Retail Package Dimension	185×129×56 mm 7.28×5.08×2.2 inches
Units per Carton	40
Carton Dimension	53.7×30.3×39.1 cm 21.14×11.93×15.39 inches
