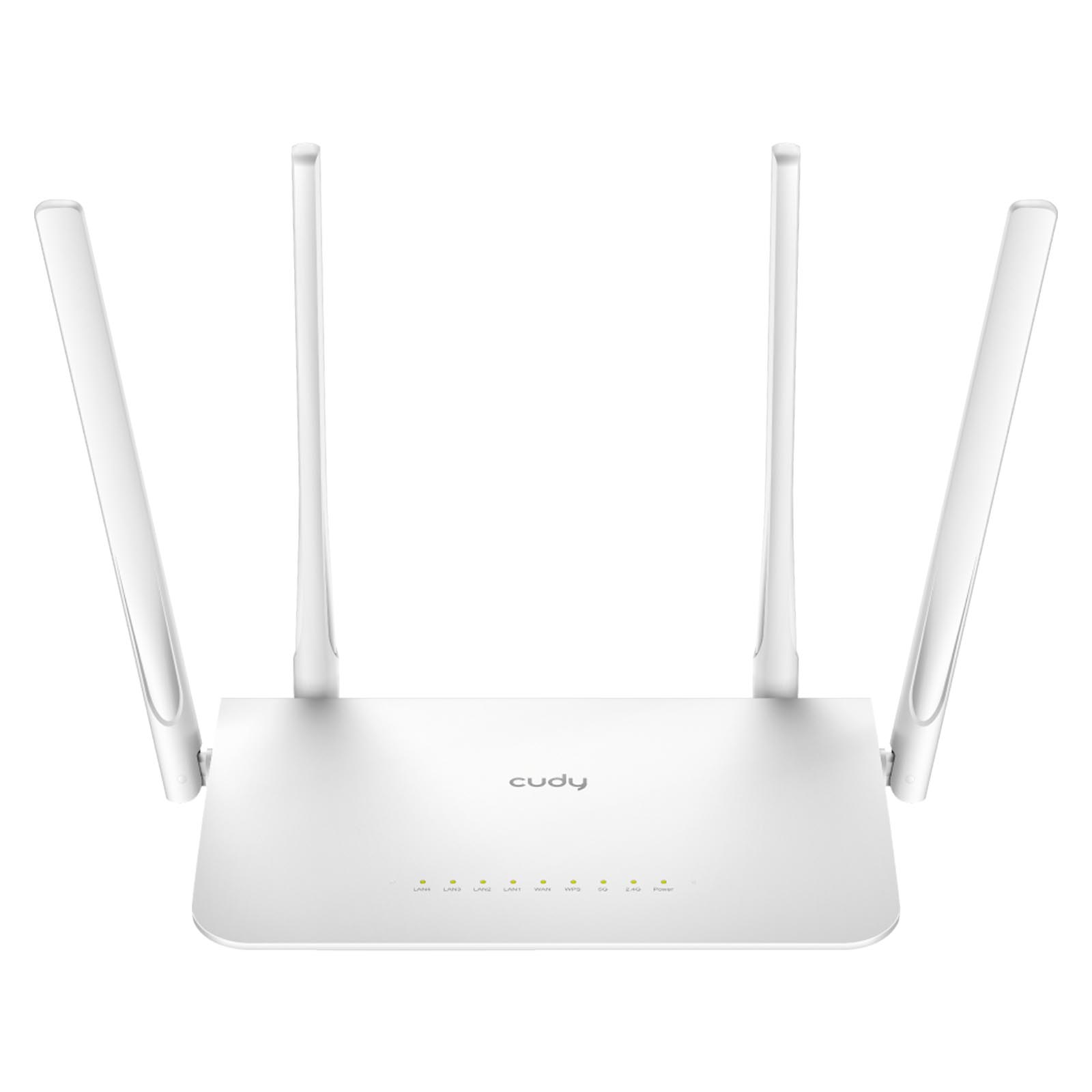

Cudy WR1300
|
|
|
Wersja modelu
|
WR1300 3.0 |
|
CPU
|
|
|
Chipset
|
MT7621 |
|
CPU Details
|
880 MHz Dual-Core, MIPS1004Kc |
|
Memory/Storage
|
|
|
Flash/ROM
|
Flash/ROM |
|
DDR/RAM
|
DDR/RAM |
|
Wireless
|
|
|
5 GHz Wi-Fi Speed
|
867 Mbps |
|
2.4 GHz Wi-Fi Speed
|
300 Mbps |
|
5 GHz Wi-Fi Streams
|
2T2R (2x2 MIMO) |
|
2.4 GHz Wi-Fi Streams
|
2T2R (2x2 MIMO) |
|
Wi-Fi Antennas
|
4x Fixed |
|
5 GHz Antenna Gain Max
|
5dBi |
|
2.4 GHz Antenna Gain Max
|
5dBi |
|
FEM or PA/LNA
|
5 GHz: 2x Internal
2.4 GHz: 2x Internal |
|
Beamforming
|
Yes |
|
Range Performance
|
Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions |
|
Wall Performance
|
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') |
|

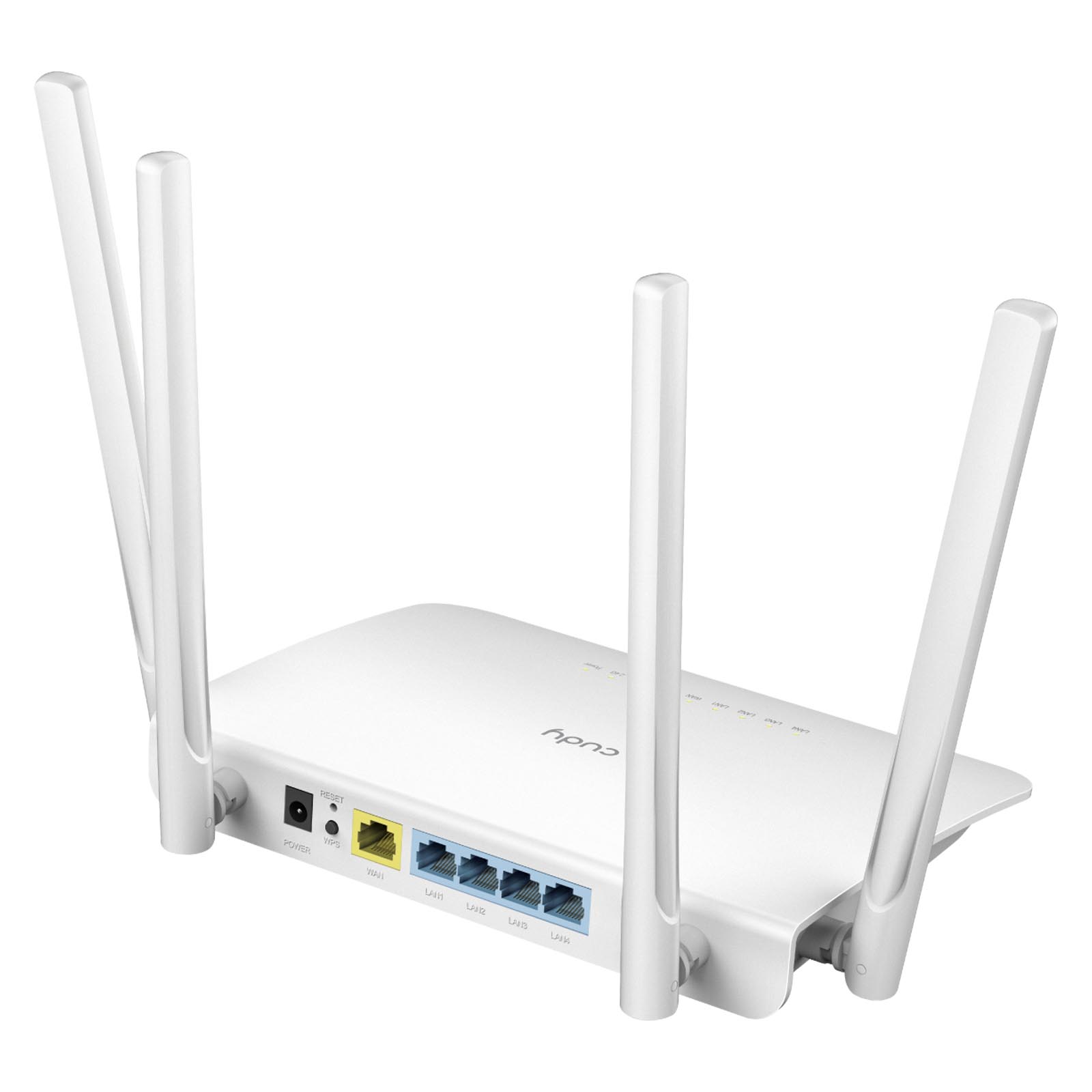

Interfaces
|
|
|
Gigabit RJ45 Ports
|
5 |
|
Gigabit RJ45 Ports
|
1x WAN port, the rest are LAN ports |
|
LED
|
Power 2.4 GHz Wi-Fi 5 GHz Wi-Fi WPS Speed/Link/ACT of Ethernet Port |
|
Physical Buttons
|
WPS Button Reset Button |
|
Power Input
|
DC Jack |
|
Power
|
|
|
Power Methods
|
DC |
|
DC
|
12V 1A |
|
Power Adapter
|
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|
Max Power Consumption (W)
|
9.27W |
|
Idle Power Consumption (W)
|
3.56W |
|
Reliability
|
|
|
Environment
|
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing |
|
Certifications
|
|
|
Certifications
|
FCC, CE |
|
Mechanical
|
|
|
Installation
|
Desktop
Wall-mount |
|
Dimension
|
204.8 x 137.5 x 38.3 mm
8.06 x 5.41 x 1.51 inches |
|
Product Weight
|
EU / US: 319 g (11.25 oz.)
ZH: 318.4 g (11.23 oz.) |
|

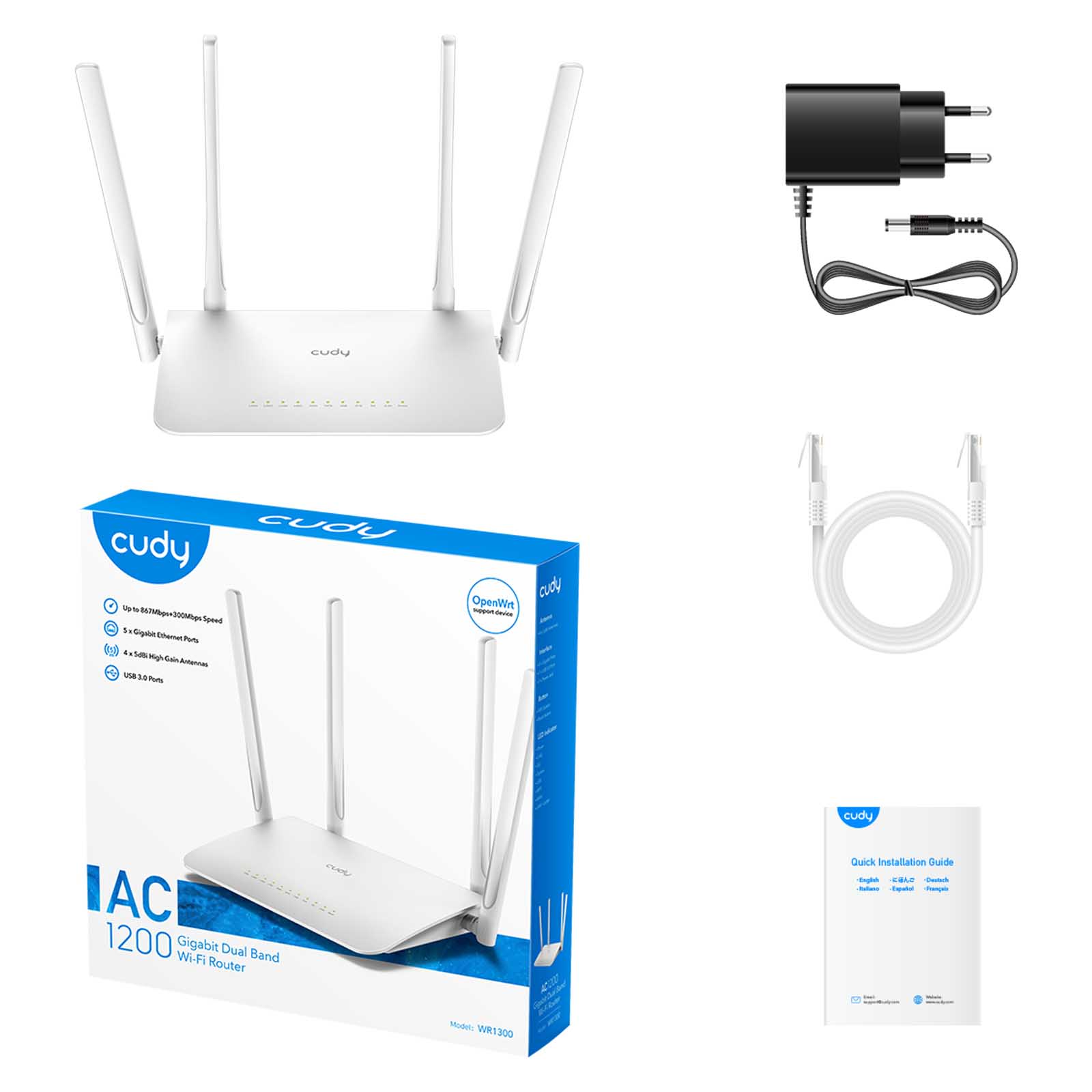

Package Content
|
WR1300 Power Adapter Ethernet Cable Installation Guide |
|
Wireless
|
|
|
Wi-Fi Standards
|
Wi-Fi 5 |
|
Max Wi-Fi Modulation
|
256-QAM |
|
Wi-Fi Efficiency
|
MU-MIMO |
|
Wi-Fi Efficiency Note
|
MU-MIMO available on 5 GHz |
|
Max Capacity
|
128 |
|
Recommended Client Upper Limit
|
50 |
|
Max Wi-Fi Channel Width
|
80 MHz |
|
Wi-Fi Security
|
WPA/WPA2/WPA3 |
|
Guest Network
|
2.4 GHz, 5 GHz |
|
WPS
|
Yes |
|
General
|
|
|
Operation Modes
|
Wi-Fi Router
Access Point
Range Extender
WISP
Client |
|
Mesh
|
Cudy Mesh |
|
Mesh Backhaul
|
Wireless Backhaul Wired Backhaul |
|
Multi-Band Backhaul
|
Yes |
|
WAN Mode
|
DHCP Static IP PPPOE PPTP L2TP |
|
Internet Failover Sequence
|
WAN WISP |
|
Network
|
|
|
QoS
|
Per-User Rate Limiting |
|
DHCP
|
Address Reservation DHCP Client List Server |
|
IP Versions
|
IPv4/IPv6 |
|
IPv6 Protocols
|
Relay Dynamic
(SLAAC/DHCPv6) Static
(Fixed IP) Passthrough
464XLAT MAP-E DS-Lite |
|
IPTV/VLAN
|
Bridge Tag VLAN VoIP VLAN IPTV VLAN |
|
TTL Customization
|
Extend Spoof Custom |
|
IGMP
|
IGMP Proxy IGMP Snooping |
|
Forwarding
|
Port Forwarding Port Triggering UPnP DMZ |
|
Firewall
|
SPI Firewall DoS Protection Block PING |
|
Application Layer Gateway
|
IPSec Passthrough L2TP
Passthrough PPTP
Passthrough FTP P
assthrough TFTP
Passthrough H323
Passthrough SIP
Passthrough RTSP
Passthrough |
|
Utilities
|
|
|
VPN Server
|
WireGuard OpenVPN IPsec
Zerotier PPTP L2TP |
|
VPN Client
|
WireGuard OpenVPN IPsec
Zerotier PPTP L2TP |
|
VPN Performance
|
OpenVPN Client (UL/DL): 22 / 24.7 Mbps
OpenVPN Server (UL/DL): 22 / 20.9 Mbps
WireGuard Client (UL/DL): 142 / 233.9 Mbps
WireGuard Server (UL/DL): 213 / 152 Mbps |
|
DNS Options
|
DNS over TLS Manual DNS
Rebind Protection Override
Clients' DNS |
|
DNS over TLS Providers
|
Cloudflare Google Quad9
Custom |
|
Captive Portal
|
Yes |
|
Wake on LAN
|
Yes |
|
Online Detection
|
Yes |
|
Max Concurrent VPN Tunnels
|
IPSec: 20 PPTP/L2TP: 16
OpenVPN: 16 |
|
General
|
|
|
Max Concurrent Sessions
|
25000 |
|
Management
|
|
|
All Devices Management
|
Wi-Fi Time Schedule MAC Filter IP/MAC Binding |
|
Per-Devices Management
|
Internet On/Off VPN On/Off Online Time Schedule Device Rename |
|
Content Management
|
Domain Filter IP Filter |
|
System
|
|
|
Local Control Method
|
Config Web Page App
Control |
|
Remote Control Method
|
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR181 |
|
Firmware Upgrade
|
Local Update App (Over the Air)
Online Update |
|
Reliability
|
Timed Reboot
Backup and Restore |
|
Diagnostic Tools
|
Diagnosis Ping Traceroute NSLookup System Log |
|
Languages
|
English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese |
|
Dashboard
|
|
|
Panel
|
Internet Status
Mesh Status
Devices Management
WAN Status
LAN Status
WISP Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version |
|
Charts
|
Mesh Topology Internet Speed WISP Speed Wi-Fi Speed |
